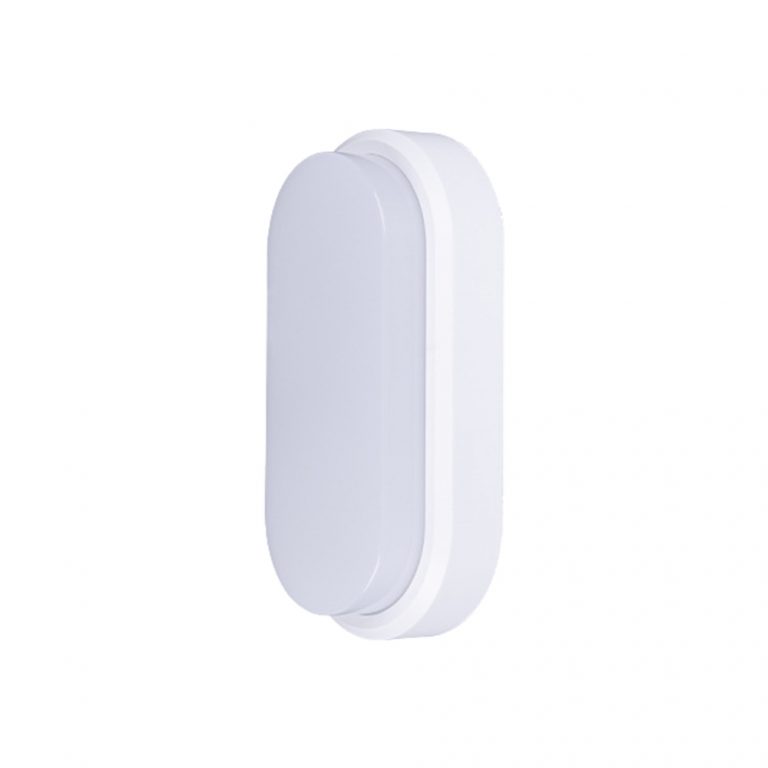

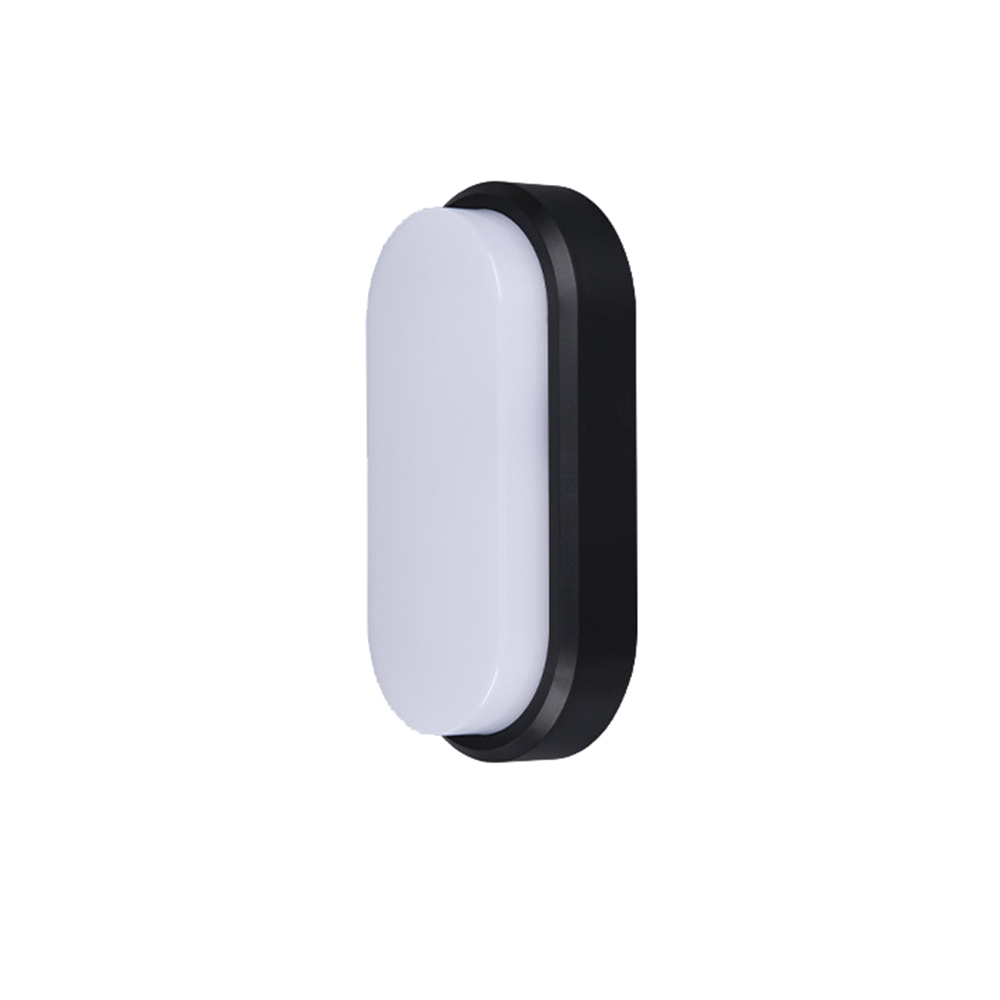

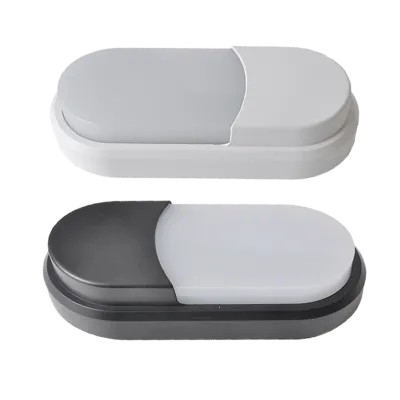

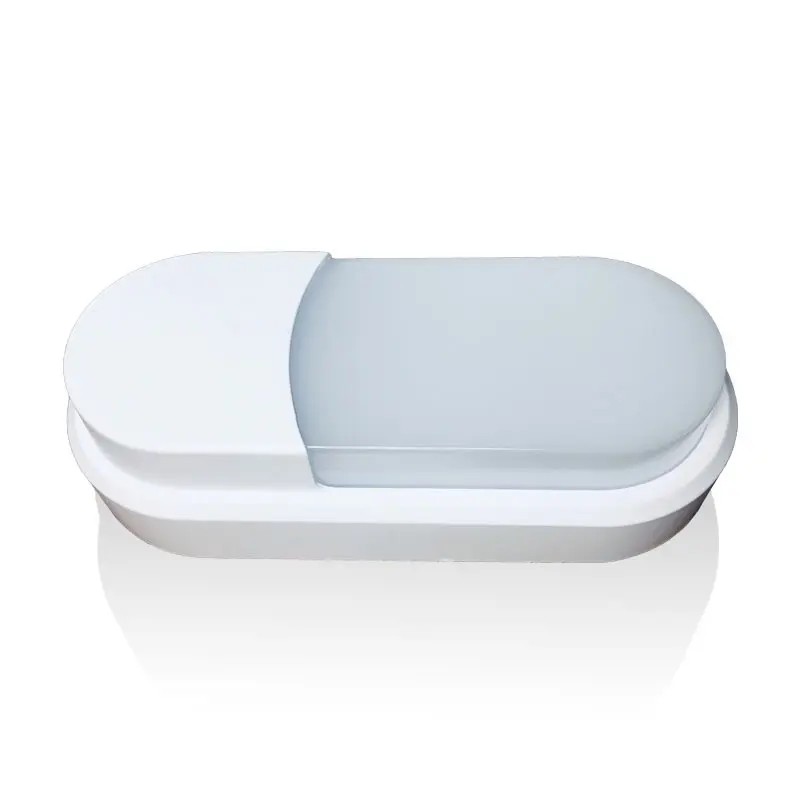

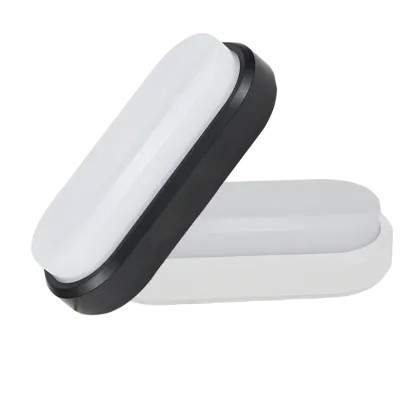

B1-D LED Bulkhead Light IP65

Waterproof | Durable | Versatile

Upgrade your outdoor and indoor lighting with the B1 LED Bulkhead Light Series. Designed for reliability and performance, the B1 models feature a sturdy PC + ABS housing and high-efficiency SMD chips (Epistar/San’an), delivering up to 100lm/W with uniform 120° beam coverage. Ideal for corridors, balconies, stairwells, and building exteriors.

---

Detail

Feature	Specification
Product Name	B1 LED Bulkhead Light (B1-D / B1-DF Series)
LED Chip	Epistar / San’an SMD
Luminous Efficiency	85–100 lm/W
Wattage Options	12W / 15W
Beam Angle	120°
Color Temperature (CCT)	2700K – 6000K
Color Rendering Index	CRI ≥ 80 / 90 / 97
Material	High-quality PC + ABS
Ingress Protection	IP65 (dust and water resistant)
Mounting Method	Surface-mounted (Wall or Ceiling)
Housing Colors	Black / White / Grey
Application Areas	Outdoor walls, stairwells, corridors, balconies, building facades
Lifespan	25,000–30,000 hours

---

Model Specifications

Order Code	Power	Size (mm)	CCT	CRI
HB195-B1-D	12W	L195×W95×H60	2700K–6000K	80/90/97
HB225-B1-D	15W	L225×W100×H55	2700K–6000K	80/90/97
HB195-B1-DF	12W	L195×W95×H60	2700K–6000K	80/90/97
HB225-B1-DF	15W	L225×W100×H55	2700K–6000K	80/90/97

Application Areas

• Residential building exteriors

• Hallways and staircases

• Gardens and balconies

• Parking areas and walkways
