Description

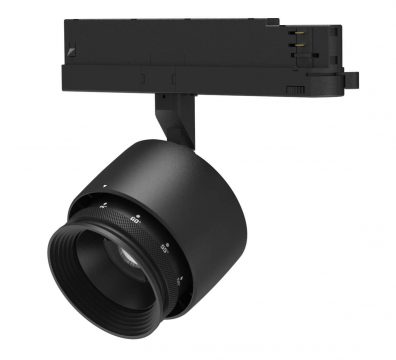

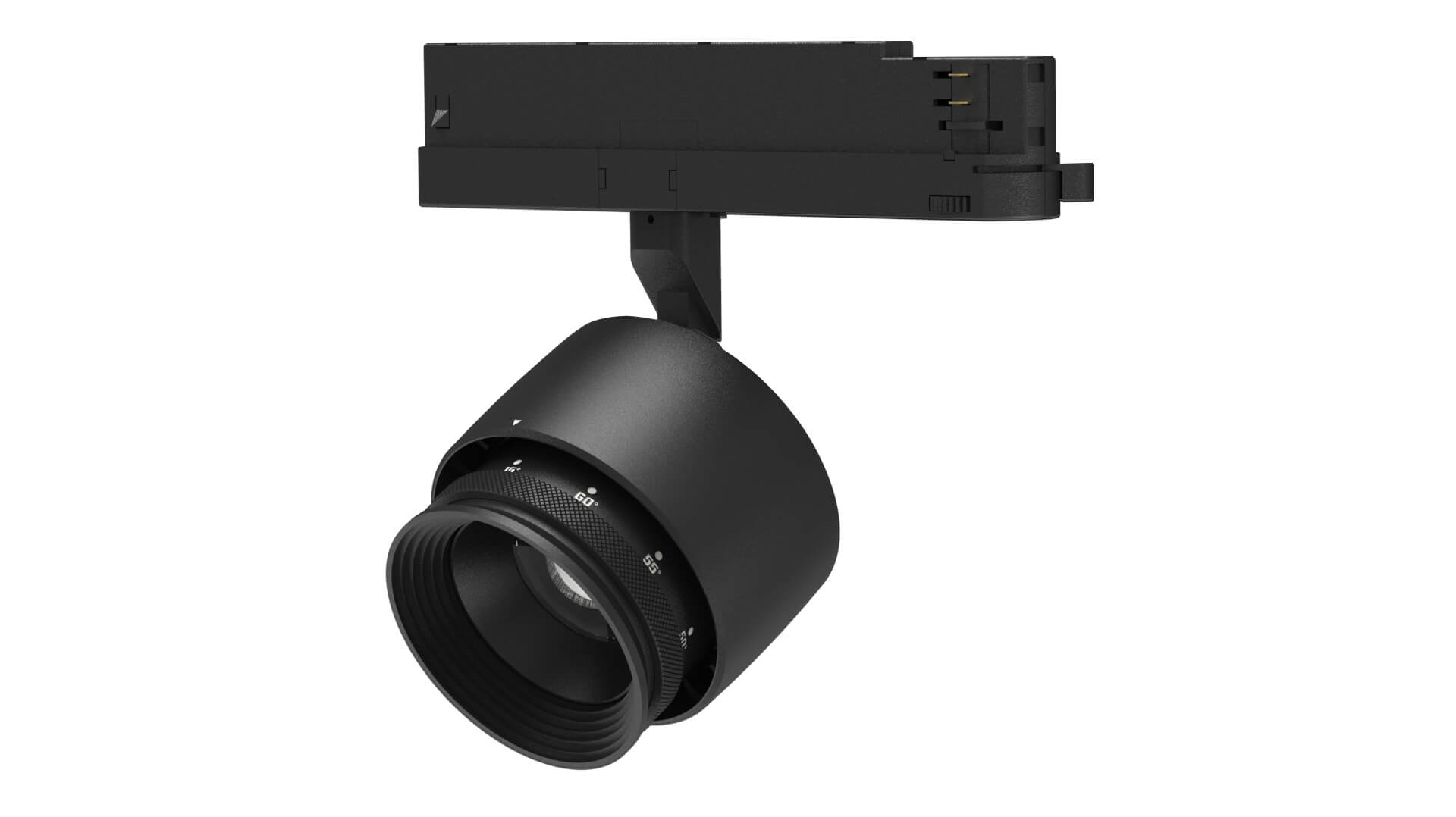

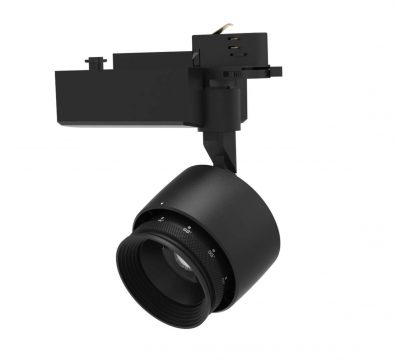

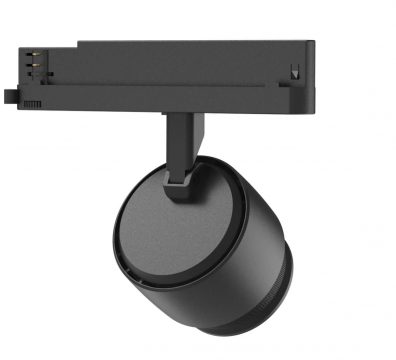

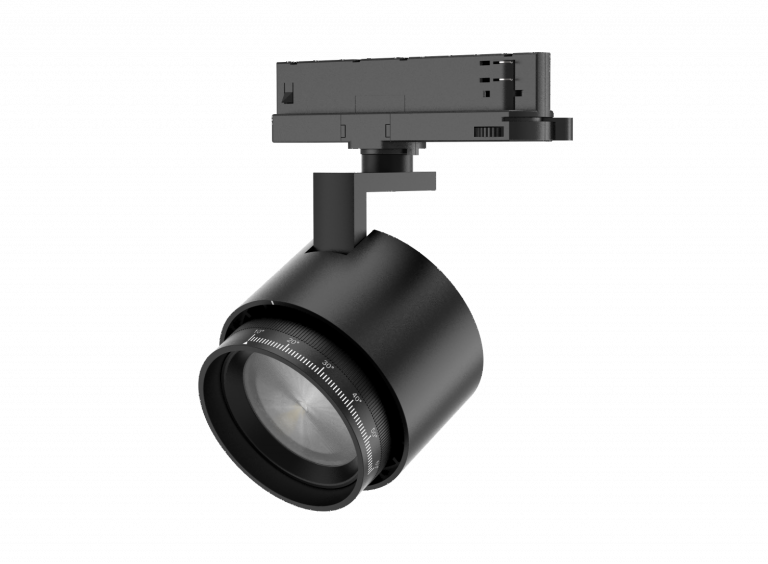

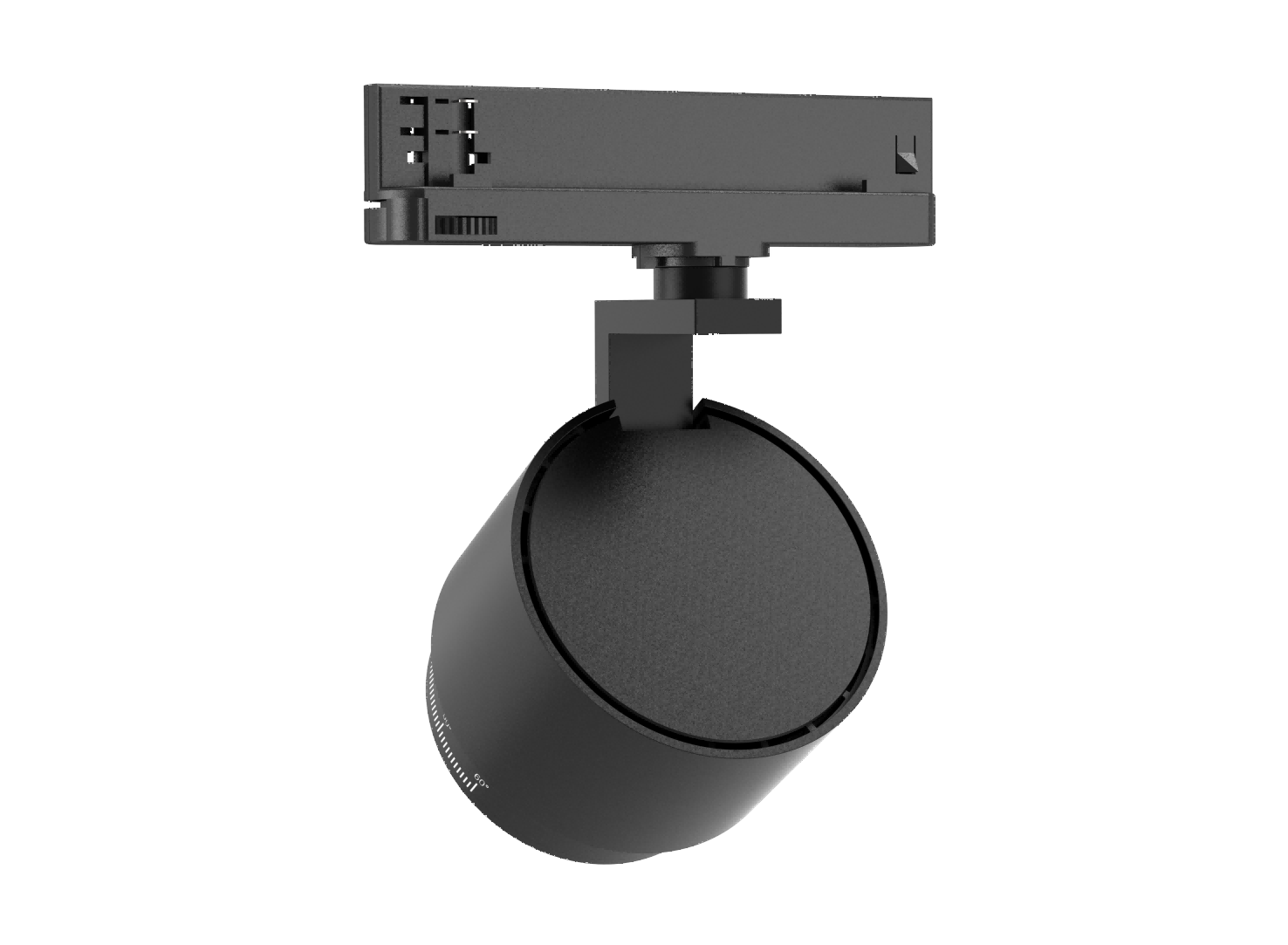

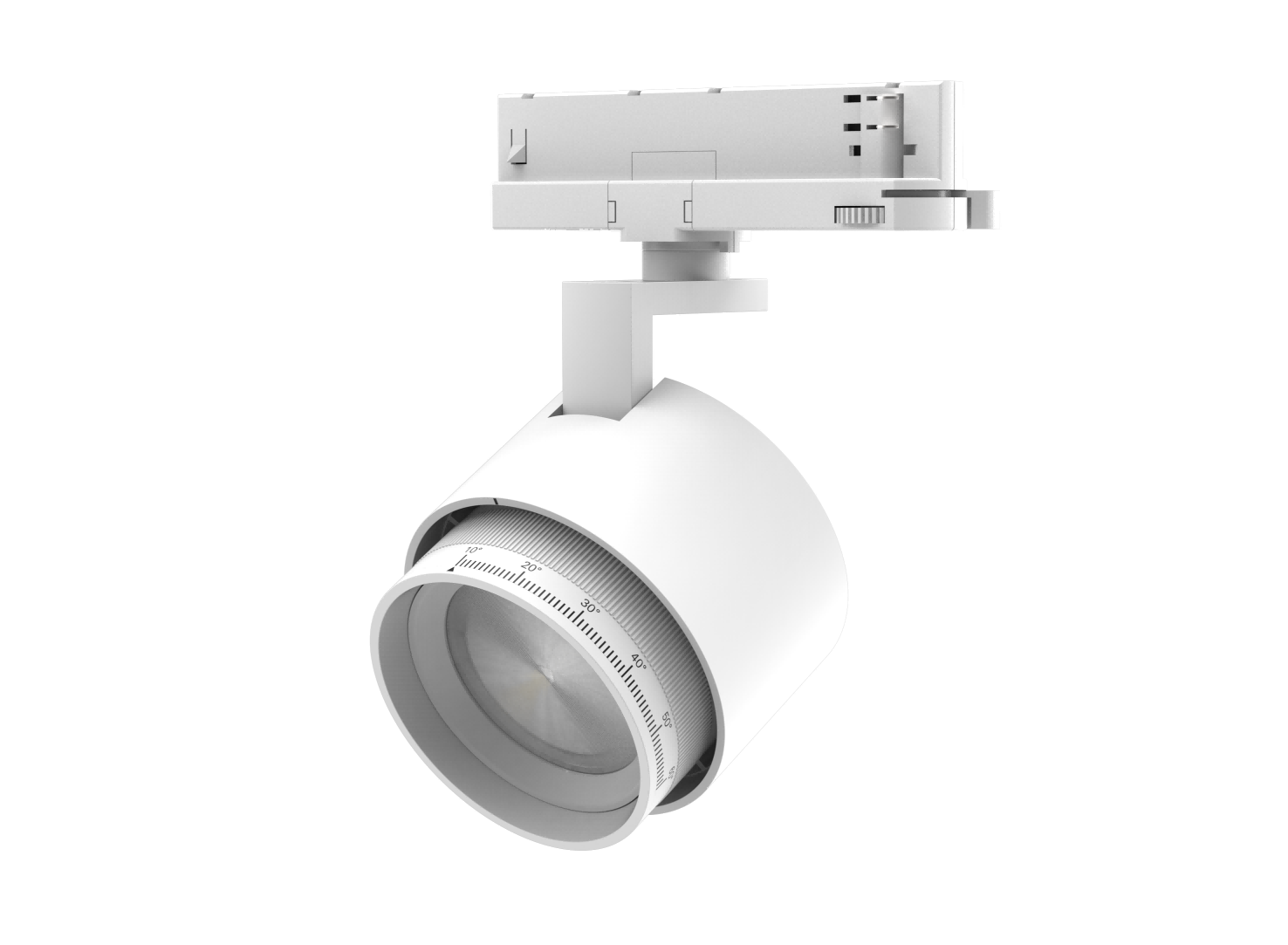

The Z2 Series Zoomable LED Track Light is designed for precision lighting in art galleries, museums, high-end retail spaces, and boutique interiors. Featuring a manually adjustable beam angle from 10° to 60°, the Z2 offers unrivaled flexibility and visual comfort. This fixture delivers exceptional color rendering (CRI 80/90/97) and supports multiple dimming options including 0-10V, DALI, and Triac, ensuring seamless integration in professional lighting environments.
Key Features
| Feature | Description |
|---|---|
| Zoomable Beam | 10°–60° adjustable optical beam |
| LED Source | Citizen / Bridgelux / Philips COB LED |
| Dimming Options | 0-10V / DALI / Triac (optional) |
| Material | Durable Aluminium housing |
| System Efficacy | 80–100 lm/W |
| Protection | IP20, suitable for indoor dry applications |
| UGR Rating | UGR <19 for visual comfort |
| Lifetime & Warranty | 50,000h lifetime, 5-year warranty |
Technical Specifications
| Parameter | HT10-Z2-B / HT10-Z2-D |
|---|---|
| Wattage | 20W / 30W |
| Beam Angle | 15°–60° |
| Luminous Output | Up to 3000 lm (30W) |
| Input Voltage | AC 220–240V, 50/60Hz |
| CCT | 2700K / 3000K / 4000K / 5000K |
| CRI | ≥80 / ≥90 / ≥97 |
| Size | D104 × L95 × H174~195 mm |
| Finish | Matte Black (customizable) |
| Track Type | 3-circuit / Global compatible |
Applications
-
Art galleries & museums
-
Retail & fashion boutiques
-
Hotels & hospitality interiors
-
Showrooms & high-end displays
Certifications
✔ CE
✔ RoHS
✔ ENEC
✔ Flicker-free
✔ SDCM<3 Available on request
Optional Add-ons
-
Honeycomb lens / barn doors
-

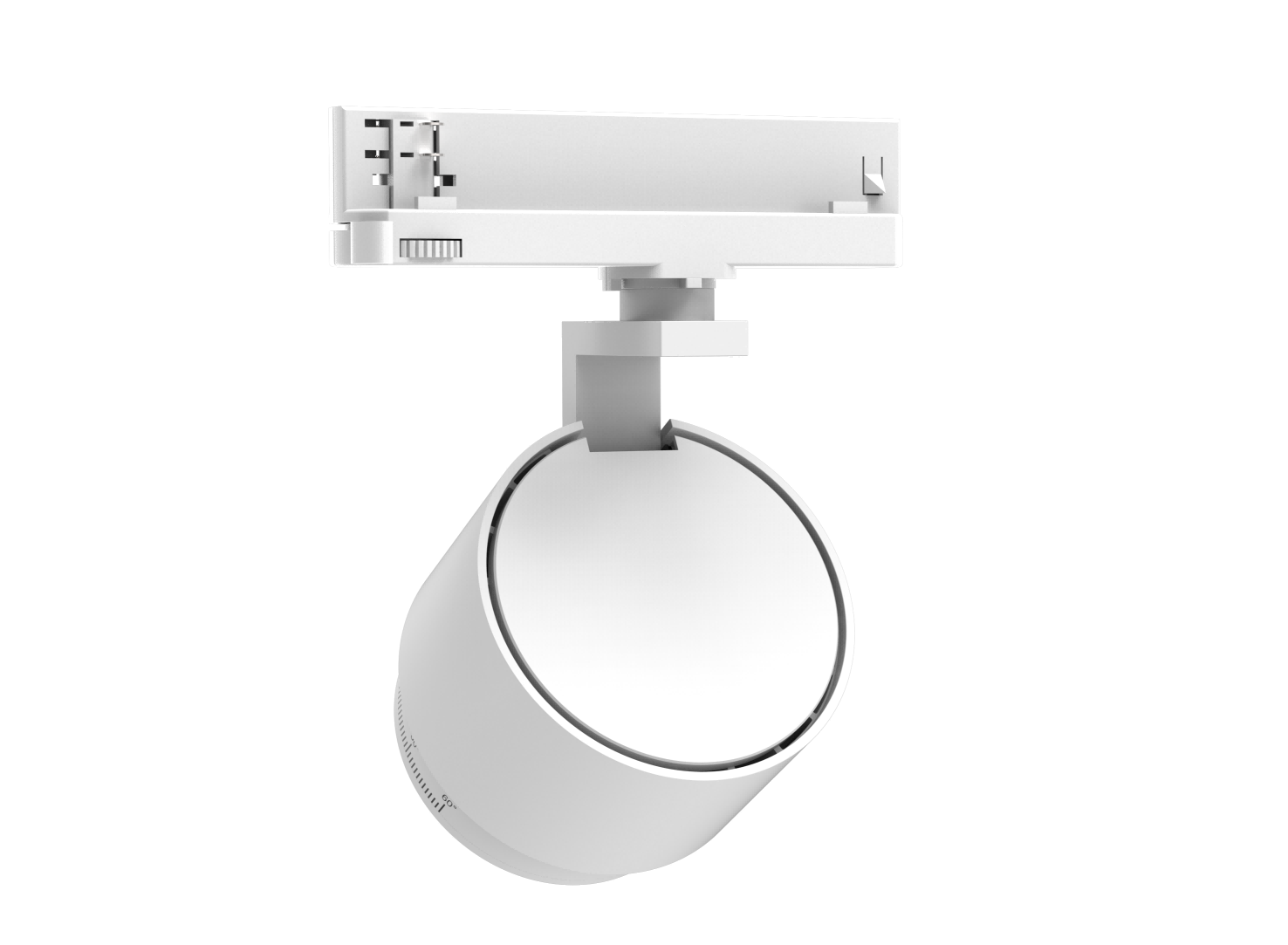

White housing color
-
Casambi / Bluetooth dimming
Selling Points

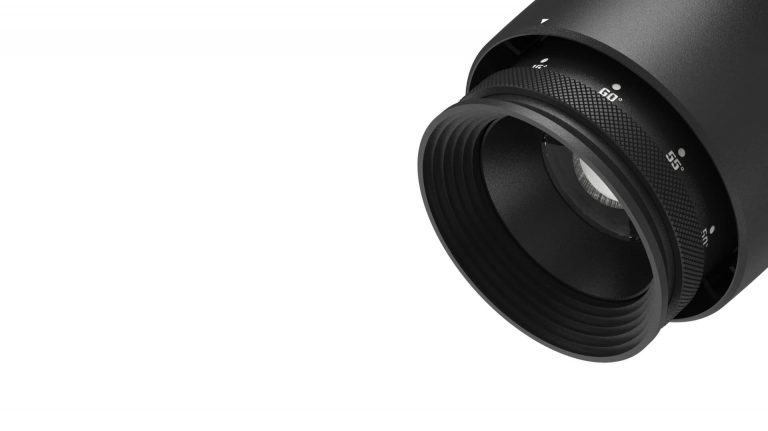

1.New zoomable design like a camera;
2.Citizen chip,better lumen output;
3.Total our design module,unique in the market;
