Description

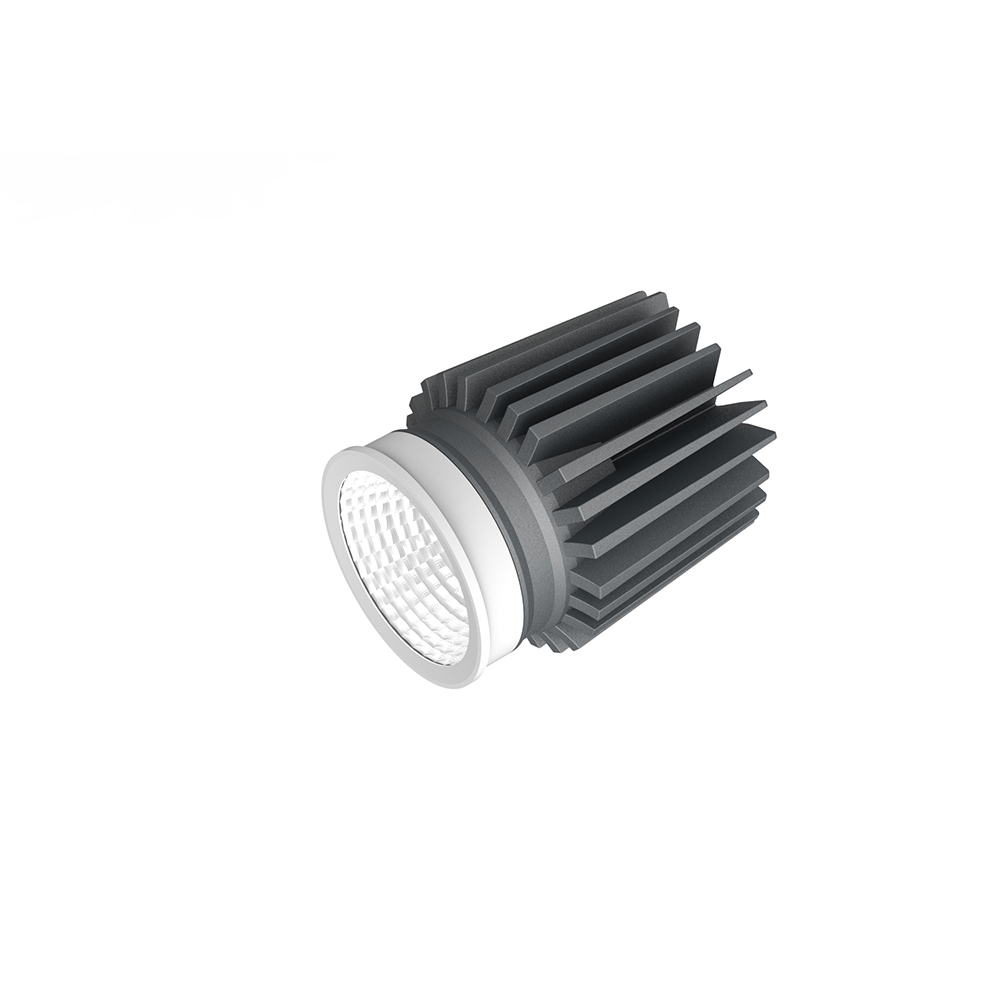

The ML Series modular LED downlight system offers ultimate flexibility with interchangeable COB LED modules and tool-free installation. Designed for European commercial interiors, the 3-inch recessed downlight features high-performance Citizen / Bridgelux / Philips COB LEDs and a UGR<16 glare-free optical design.
Product Highlights
-
Modular Design – Interchangeable COB LED modules and trim rings allow flexible customization to match various project needs.
-
Tool-free Assembly – Quick connect system enables fast installation and module replacement – no tools required.
-
Multiple Beam Angles – Choose from 24°, 36°, 45°, or 60° to suit different lighting applications.
-
High Efficiency & CRI – Up to 105lm/W, CRI 90+, providing consistent and vivid lighting for commercial and architectural spaces.
-
Versatile Sizes – Available in round and square cutouts with 3-inch trim compatibility.
-
Certified Quality – CE, RoHS compliant, SDCM<3, flicker-free, available in IP20 / IP44 / IP65 versions.
Specifications
| Feature | Description |
|---|---|
| LED Source | Citizen COB / Bridgelux COB / Philips COB |
| System Lumen | 95–105lm/W |
| CCT Options | 2700K / 3000K / 4000K / 5000K |
| CRI | ≥90 |
| UGR | <16 |
| Power | 5W / 7W / 10W / 12W / 15W |
| Beam Angles | 15°，24°, 36°, 45°,50°，60° |
| Cut-out Sizes | Ø50–75mm depending on model |
| IP Rating | IP20 / IP44 / IP65 |
| Lifespan | >50,000 hrs (L80B10) |
| Dimming | Available upon request (Triac / 0-10V / DALI) |
| Warranty | 5 Years |
Available Models
| Model | Wattage | Beam Angle | CCT Range | Size |
|---|---|---|---|---|
| HO03-ML1-R | 5W / 7W | 15°/24°/36°/45°/50°60° | 2700K–5000K | Ø50*H56mm |
| HO03-ML2-R | 7W/10W | 15°/24°/36°/45°/50°60° | 2700K–5000K | Ø50*H71mm |
| HO03-ML3-R | 12W/15W/18W | 15°/24°/36°/45°/50°60° | 2700K–5000K | Ø50*H74mm |
| HO03-ML2-C | 5W/7W | 15°/24°/36°/45°/50°60° | 2700K–5000K | Ø50*H82mm |
| HO03-ML3-C | 10W/12W/15W | 15°/24°/36°/45°/50°60° | 2700K–5000K | Ø50*H82mm |
Application Areas
-
Hospitality Lighting (Hotels, Lounges)
-
Retail & Showroom Lighting
-
Office Lighting
-
Galleries & Museums
-
Residential Projects
-
Commercial Corridors
Optional Reflector & Lens
-
Reflectors: Narrow / Medium / Wide
-
Lens Options: Clear / Frosted / Honeycomb
-
Trim Ring Finishes: White / Black / Custom
Selling Points
1.Better looking than regular module in the market;
2.Philips chip,better lumen output;
3.Better painting finish,quality feeling;
4.Perfect lighting spot.
